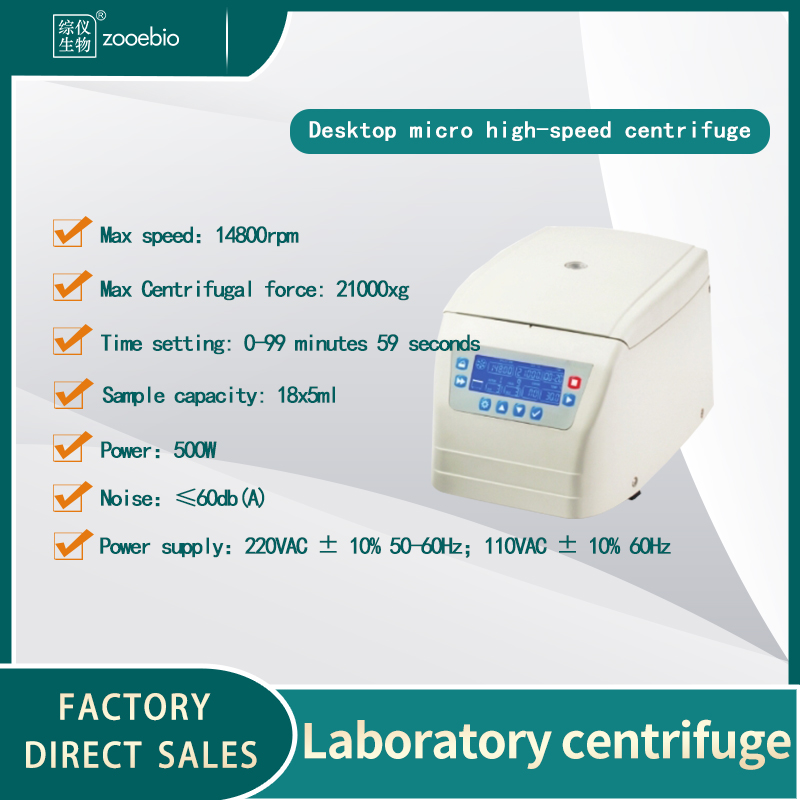

Specifications:
|
Model
|
Minimax 21K
|
|
Support power supply
|
220VAC±10% 50 -60Hz 110VAC±10% 60Hz
|
Power
|
500W
|
|
Drive motor
|
Exchange variable frequency motor
|
Time Set
|
1 second-99 minutes and 59 seconds
|
|
Max.speed
|
14800rpm (100-14800rpm) Increment 100rpm
|
Max.relative centrifugal force
|
21000xg (100-21000xg) Increment 100xg
|
|
Max. capacity
|
18x5ml
|
Max. centrifugal medium density
|
1.2g/ml
|
|
Accelerate to maximum speed time
|
14s
|
Deceleration time from the highest speed
|
14s
|
|
noise
|
≤60db（A）
|
Weight
|
12Kg
|
|
Volume (lengthxwidthxheight)
|
360mmx245mmx230mm
|
|
|
|
Angle rotor #1
|
capacity:24x1.5ml
Maximum speed: 14800rpm
Maximum relative centrifugal force: 21000xg
|
Angle rotor #2
|
capacity:18x5ml
Maximum speed: 14800rpm
Maximum relative centrifugal force: 21000xg
|
Features:
Max. capacity (ml); 18x5ml;
◎ After reaching the set speed, the operating parameters can be modified;
◎ Max.centrifugal force (rcf): less than or equal to 21000xg (14800rpm);
◎ The operation panel has a unique design dynamic icon, which displays the running status in real time;
◎ Accelerate to the highest speed time: less than 14S, decelerate from the highest speed time: less than 14S;
◎ There is no need to switch the speed and centrifugal force, which facilitates data reading;
◎ Running process display and error code prompt;

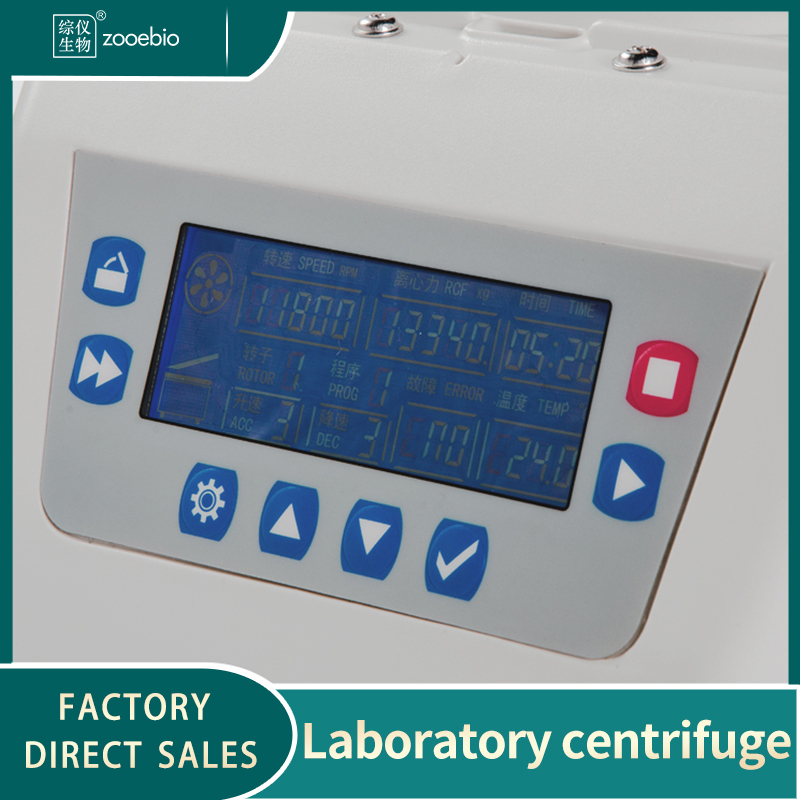

◎ LCD large display, showing all running parameters;
◎ New material rotor, wear resistant, acid and alkali salt and organic solvent resistance is good, suitable for complex and changeable laboratory environment;
◎ After running, the sound prompts and automatically opens the lid to facilitate sample cooling;
◎ The unique temperature display in the centrifuge chamber ensures the safety of samples;
◎ Instant centrifugal function, hold to achieve fast and convenient centrifugation;
◎ The AC variable frequency aluminum shell motor has uniform and stable speed rise and fall, and small temperature rise.
