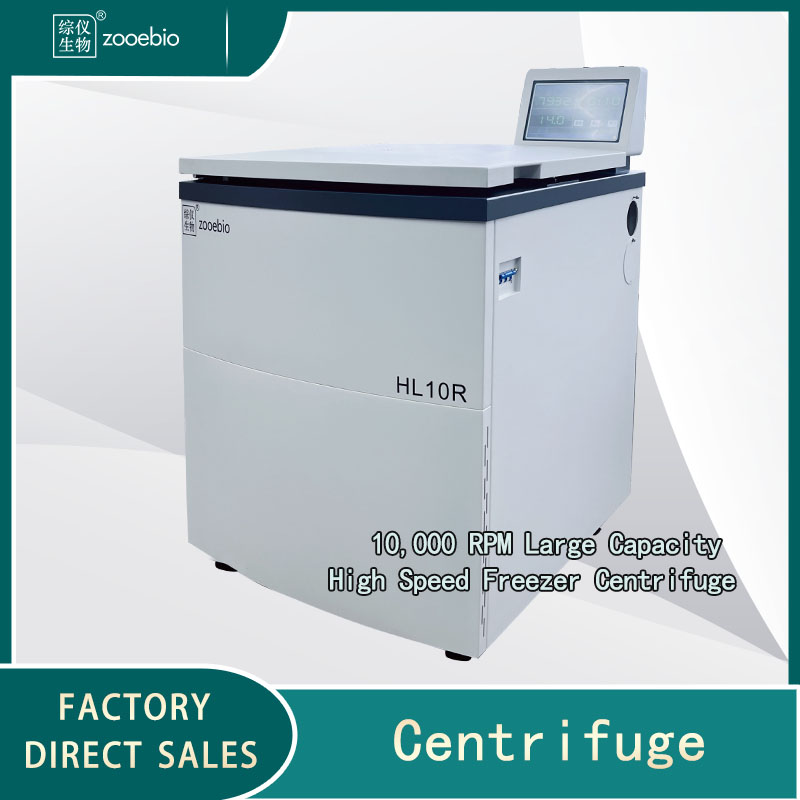

Floor-standing High Capacity High Speed Freezing Centrifuge HL10R

$19,535.13 USD
Shipping fees will be calculated at checkout.
Quantity
Inventory: 9999 available

Technical Parameters:

Model

HL10R (high-speed freezing)

max.speed

10000rpm

Support power supply

AC 220±22V 50Hz 64A

max. relative centrifugal force

18500×g

power

6500W

max. capacity

6×1000ml

total noise of centrifuge

< 65dB(A)

Timing range

1min~99min59sec

Diameter of centrifugal chamber

600mm

Temperature setting range

-20℃~40℃

Speed accuracy

±20rpm/min

Temperature accuracy

±2.0℃

Minimum acceleration/deceleration time

180s/178s

Size (length x width x height)

830×730×1200(mm)

net weight

256kg

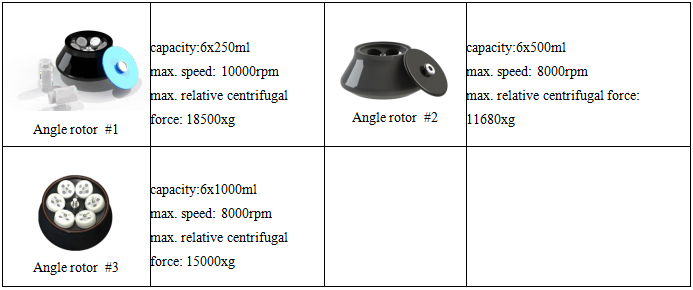

Rotor parameters:

Angle rotor  #1

capacity:6x250ml

max. speed: 10000rpm

max. relative centrifugal force: 18500xg



Angle rotor  #2

capacity:6x500ml

max. speed: 8000rpm

max. relative centrifugal force: 11680xg

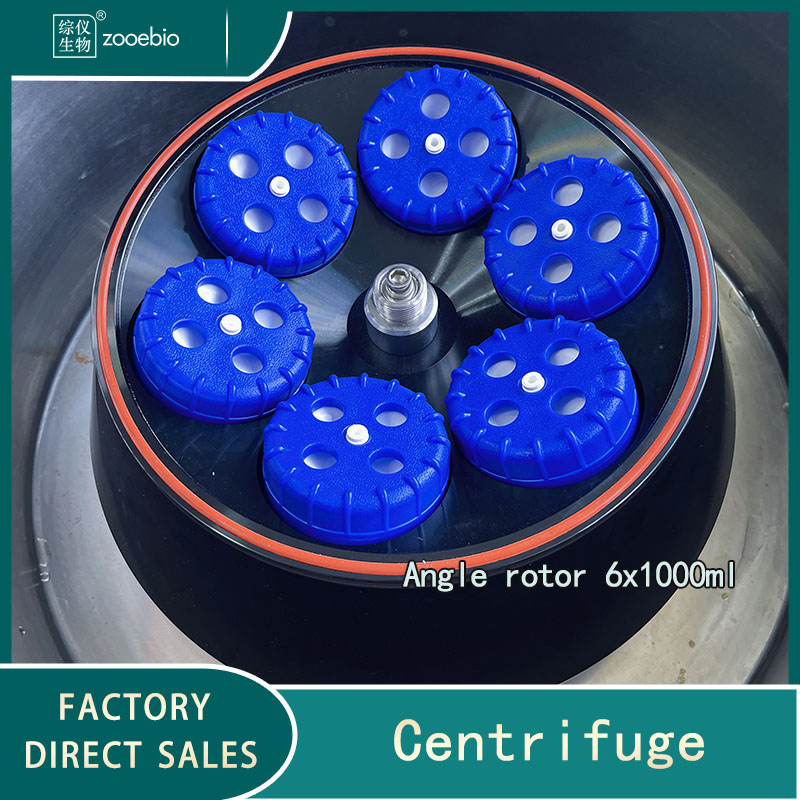

Angle rotor  #3

capacity:6x1000ml

max. speed: 8000rpm

max. relative centrifugal force: 15000xg







Product description:

    • Superior performance: microcomputer control; AC frequency conversion motor drive, no carbon powder pollution, extended service life;
    • Low noise, small vibration; equipped with the latest ultra-light large capacity rotor, efficiency greatly improved;
    • Simple operation: touch panel, digital display, programmable operation;
    • Best effect: users can set the speed time at will, automatically calculate the RCF value, refrigeration and heating dual temperature control, centrifugal effect to achieve the best;
    • Safe and reliable: there are many kinds of protection such as overspeed, overtemperature, unbalance, door cover self-locking, etc., to ensure the safety of human and machine;
    • HL10R can be widely used in bioengineering, genetic engineering, biopharmaceutical and other fields.
